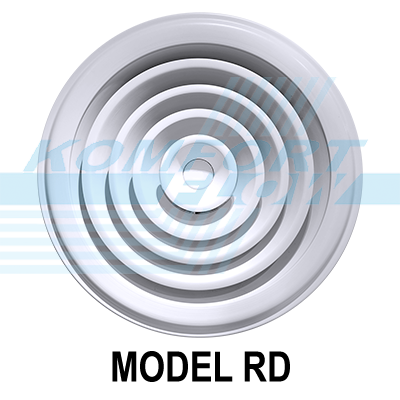

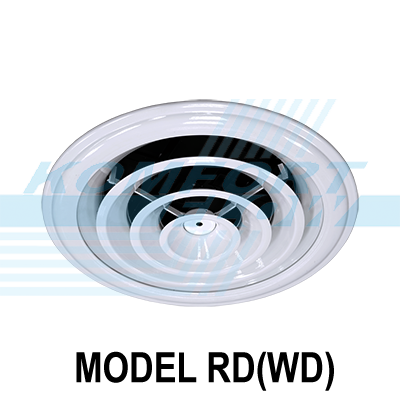

RD Model - Ceiling Diffuser

Komfort Flow RD Model is the Round ceiling diffuser, With its excellent horizontal air pattern makes it ideal for high flow application such as supermarket, gymnasium, hall, lobby or exposed duct application.

รายละเอียด

Komfort Flow RD Model is the Round ceiling diffuser,With its excellent horizontal air pattern makes it ideal for high flow application such as supermarket,gymnasium,hall,lobby or exposed duct application. RD Model consists of several concentric cones suspended below the ceiling line by an outer cones.
หน้ากากแอร์ รุ่น RD เป็นหัวจ่ายติดเพดานแบบกลม สามารถจ่ายอากาศในแนวระนาบได้ดี จึงเหมาะสำหรับการใช้งานที่ต้องการจ่ายอากาศปริมาณมากๆ เช่น ซูเปอร์มาร์เก็ต โรงยิมห้องโถง ล็อบบี้หรือการใช้ท่อเปิด หน้ากากแอร์ รุ่น RD ประกอบด้วยชั้นรูปทรงกรวยหลายชั้น โดยแต่ละชั้นจะมีระดับที่ต่ำลง เพื่อเพิ่มพื้นที่ในการไหลของอากาศ และ
ลดแรงดันตกคร่อม

Material
Komfort Flow “RD” diffuser is made of aluminium and finished with baked enamel in any desired colour as specified.
หน้ากากแอร์ รุ่น RD ทำจากอลูมิเนียมแผ่นขึ้นรูป และ สามารถเคลือบอบสีที่ต้องการได้

Air Patterns
RD Model offer a 360 degree horizontal air diffusion pattern. Also, they are suitable to horizontal air throws due to their blade structures and are fixed to ceiling.
หน้ากากแอร์ รุ่น RD สามารถกระจายอากาศโดยรอบตัว 360 องศาในแนวระนาบ ซึ่งเหมาะสมกับสำหรับการกระจายอากาศในแนวนอน

Good Points
Available neck size from 6” to 20” allows wide range of selection. Centre core is removable for cleaning, maintenance and installation.
สามารถเลือกขนาดคอได้ตั้งแต่ ขนาด 6” ถึง 20” ซึ่งใจกลางสามารถถอดมาบำรุงรักษา และ ทำความสะอาดได้

Edges
RD Model offers only 1 selection,“slope edge” (bevel drop) offer maximum air flow distribution.
หน้ากากแอร์ รุ่น RD มีขอบเพียง 1 แบบ คือ ขอบลาด (วางเอียง) มีการกระจายการไหลของอากาศสูงสุด

Option
RD Model can be fitted with butterfly volume damper from front,
without removing cores as shown in Figure1.
หน้ากากแอร์ รุ่น RD สามารถติดตั้ง Damper ได้จากด้านหน้า โดยไม่ต้องถอดแกนดังแสดงใน รูปที่ 1

Finish
Finishing with the powder coating.Other special finishes are available on request.
สามารถสั่งให้พ่นสีฝุ่นได้ตามต้องการเพื่อให้เหมาะกับงานออกแบบของท่าน

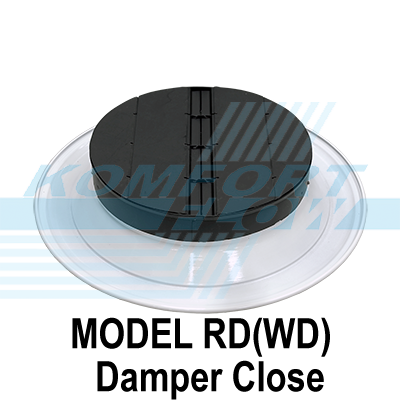

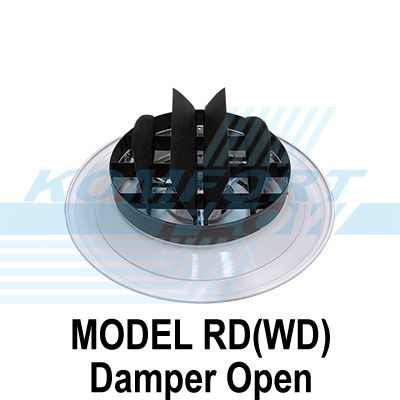

Butterly Volume Damper


A butterfly damper that provides simple and easy control of air volume.
Damper  ทำให้การควบคุมปริมาณของอากาศง่ายและสะดวก

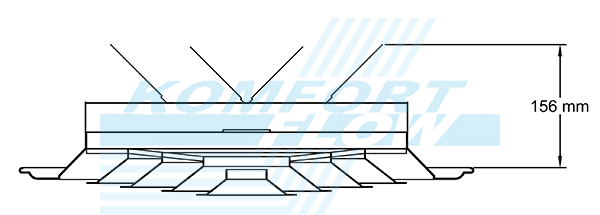

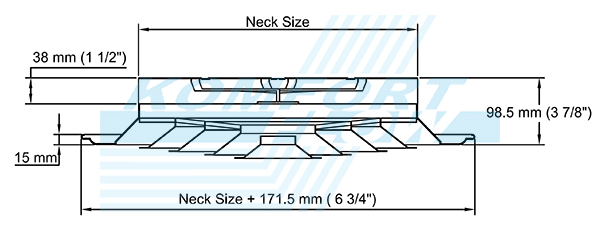

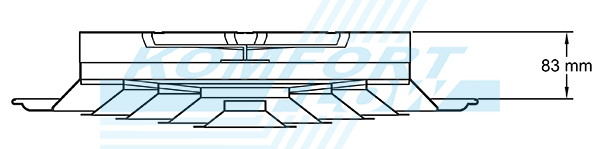

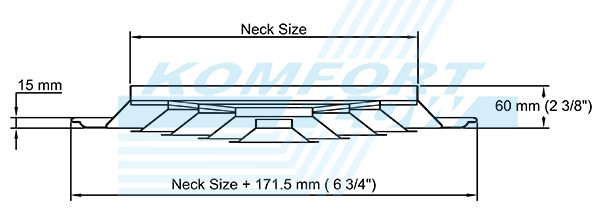

Section Detail

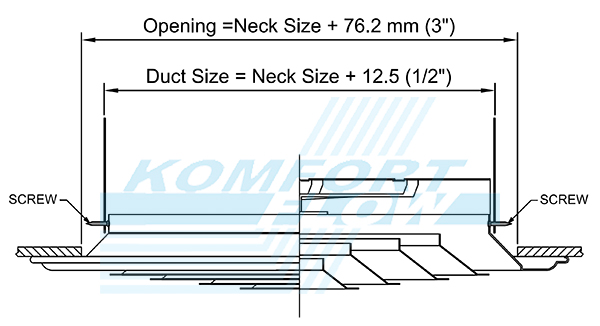

Installation
